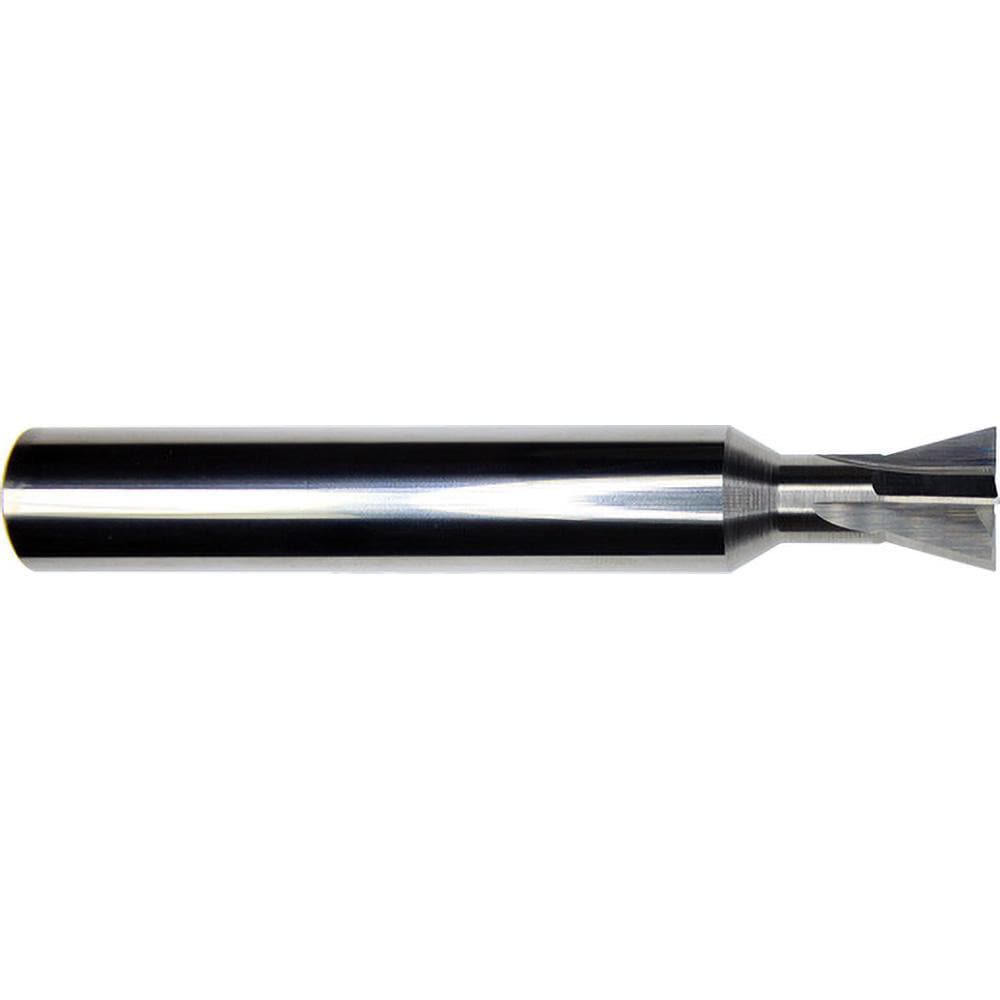

Dovetail Cutters; Included Angle: 30; Cutter Diameter (Inch): 5/8; Cutter Diameter (Decimal Inch): 0.6250; Cutting Width (Decimal Inch): 0.5000; Cutting Width (Inch): 1/2
Item #: 11784725
Brand: Internal Tool
Model #: 86-2600
Product Specifications
| Included Angle | 30 |
| Cutter Diameter (Inch) | 5/8 |
| Cutter Diameter (Decimal Inch) | 0.6250 |
| Cutting Width (Decimal Inch) | 0.5000 |
| Cutting Width (Inch) | 1/2 |
| Cutter Material | Solid Carbide |
| Weldon Flat | No |
| Shank Diameter (Inch) | 5/8 |
| Minimum Cutter Diameter (Decimal Inch) | 0.3450 |
| Coating/Finish | Uncoated |
| Shank Length (Inch) | 2-3/4 |
| Neck Length (Decimal Inch) | 0.2500 |
| Neck Diameter (Decimal Inch) | 0.3450 |
| Overall Length (Inch) | 3-1/2 |
| Overall Length (Decimal Inch) | 3.5000 |
| Primary Workpiece Material | Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel; Super Alloys & Titanium |
| Primary Workpiece Material Code | P; S; K; M; N |
| Cutting Direction | Right Hand |
| Cutter Material Grade | Micrograin |
| Series | 86 |
| Corner Radius (Decimal Inch) | 0.0300 |
| Maximum Cutter Diameter (Decimal Inch) | 0.6250 |
| Number Of Teeth | 6 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Shank Length (Decimal Inch) | 2.7500 |
| UNSPSC Code | 23241632 |
