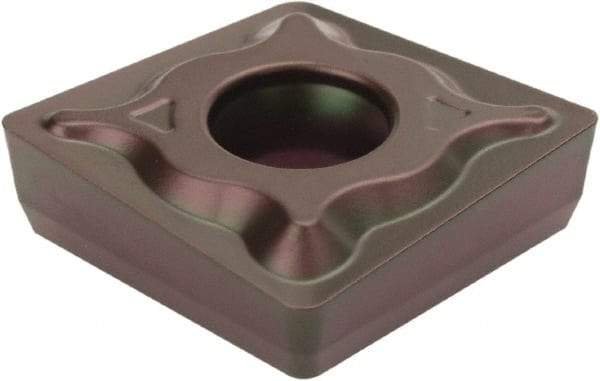

Allied Machine and Engineering - XCNT09T304 EN Grade CTPP430 Carbide Indexable Drill Insert - Square, 0.134" Inscribed Circle
Item #: 33216235
Brand: Allied Machine and Engineering
Model #: 11821210
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | XCNT |
| Insert Size | 09T304 |
| Material | Carbide |
| Manufacturer's Grade | CTPP430 |
| Inscribed Circle (Decimal Inch) | 0.1340 |
| Thickness (Decimal Inch) | 0.1560 |
| Corner Radius (Decimal Inch) | 0.016 |
| Shape | Square |
| Width (Decimal Inch) | 0.3540 |
| Included Angle | 88 |
| Chipbreaker | EN |
