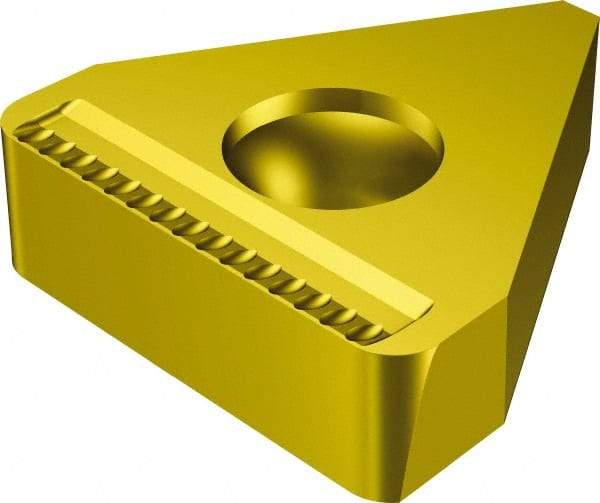

Sandvik Coromant - 0.625BP Grade 235, 3/4" Cutting Width Carbide Grooving Insert - 3/4" Max Depth of Cut, Neutral, 0.76mm Corner Radius, TiCN/TiN Finish
Item #: 33203191
Brand: Sandvik Coromant
Model #: 5723257
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | BP |
| Insert Size | 0.625 |
| Material | Carbide |
| Cutting Width (Inch) | 3/4 |
| Cutting Width (Decimal Inch) | 0.7500 |
| Maximum Depth of Cut (Inch) | 3/4 |
| Maximum Depth of Cut (Decimal Inch) | 0.7500 |
| Manufacturer's Grade | 235 |
| Coating | TiCN/TiN |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Cutting Height (mm) | 6.35 |
| Cutting Height (Inch) | 1/4 |
| Cutting Height (Decimal Inch) | 0.2500 |
| Insert Seat Size | 0.625 |
| Multi-Use Tool | Yes |
| Multi-Use Application | Parting; Grooving; Slitting; Slotting; Plunging |
| Minimum Corner Radius (Decimal Inch) | 0.0300 |
| Maximum Corner Radius (Decimal Inch) | 0.0300 |
| Corner Radius (mm) | 0.76 |
| Corner Radius (Decimal Inch) | 0.0300 |
| Coating Process | CVD |
| Overall Length (mm) | 22.20 |
| Overall Length (Decimal Inch) | 0.8740 |
| Series | T-Max |
| Rake Angle | 0 |
| Rake | Neutral |
| ISO Number | BP-750030 235 |
| Manufacturers Catalog Number | BP-750030 235 |
| Overall Width (mm) | 19.05 |
| Overall Width (Inch) | 3/4 |
| Overall Width (Decimal Inch) | 0.7500 |
| Insert Thickness (Decimal Inch) | 0.2500 |
