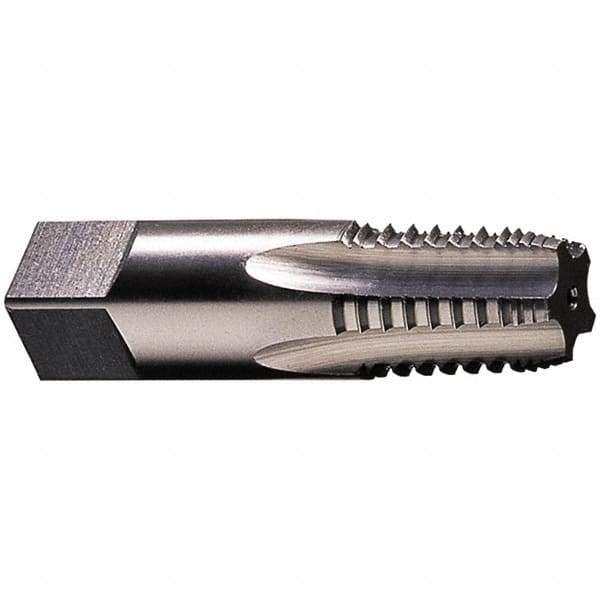

Vermont Tap & Die - 1/8-27 NPTF, 5 Flutes, Bright Finish, High Speed Steel, Interrupted Thread Pipe Tap - 2-1/8 Inch Overall Length, 7/16 Inch Shank Diameter, 3/4 Inch Thread Length, 0.32 Inch Square Size, Regular Hook, Taper Chamfer, Series 3182
Item #: 33160649
Brand: Vermont Tap & Die
Model #: 385752
Exact Tooling IR#: 04
Features and Benefits
NPTF (National Pipe Taper Fuel) refers to Dryseal American National Standard Tapered Pipe Threads. They do not require a sealant due to being formed by metal to metal contact.
High Speed Steel (HSS) provides good wear-resistance and can be used in general purpose applications for both ferrous and non-ferrous materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
Taper chamfers are known as a starter tap. They have a longer chamfer and require a less aggressive cutting action. They are 7 to 10 threads.
| Product Specifications | |
|---|---|
| Thread Size (Inch) | 1/8-27 |
| Thread Standard | NPTF |
| Material | High Speed Steel |
| Finish/Coating | Bright |
| Number of Flutes | 5 |
| Overall Length (Decimal Inch) | 2.1250 |
| Overall Length (Inch) | 2-1/8 |
| Thread Length (Decimal Inch) | 0.7500 |
| Thread Length (Inch) | 3/4 |
| Hook | Regular |
| Shank Diameter (Decimal Inch) | 0.4375 |
| Square Size (Decimal Inch) | 0.3280 |
| Series/List | 3182 |
| Chamfer | Taper |
