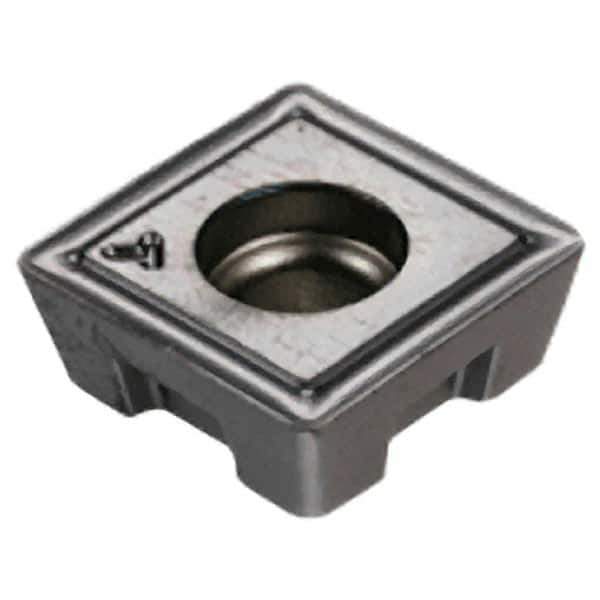

Iscar - SOMT110408 DT Grade IC808 Carbide Indexable Drill Insert - TiAlN Finish, Square, 11.5mm Inscribed Circle
Item #: 32947152
Brand: Iscar
Model #: 5507876
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat-resistant and used for high-speed applications on stainless steels, nickel and titanium alloys.
| Product Specifications | |
|---|---|
| Insert Style | SOMT |
| Insert Size | 110408 |
| Material | Carbide |
| Manufacturer's Grade | IC808 |
| Inscribed Circle (mm) | 11.50 |
| Inscribed Circle (Decimal Inch) | 0.4528 |
| Thickness (mm) | 4.80 |
| Thickness (Decimal Inch) | 0.1890 |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Shape | Square |
| Coating | TiAlN |
| Coating Process | PVD |
| Chipbreaker | DT |
