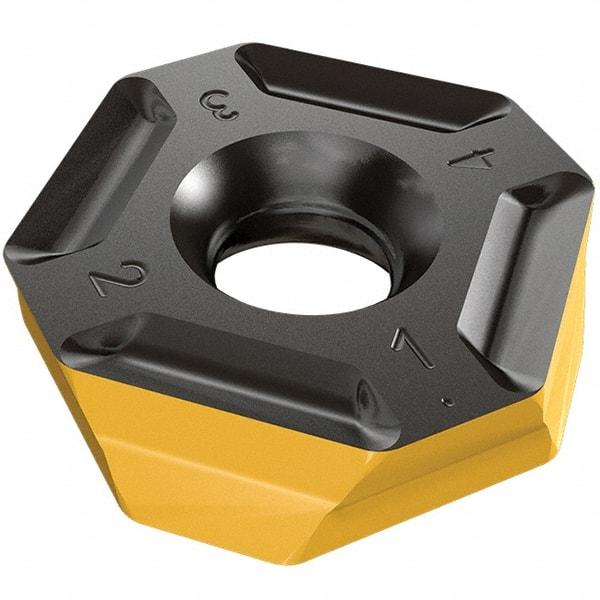

Iscar - IQ845 SYHU0503 MM Grade IC808 Carbide Milling Insert - TiAlN/AlTiN/TiN Finish, 3mm Thick, 8.3mm Inscribed Circle, 0.5mm Corner Radius
Item #: 32676611
Brand: Iscar
Model #: 5607764
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | IQ845 SYHU |
| Insert Size | 0503 |
| Material | Carbide |
| Material Grade | Fine Grain |
| Manufacturer's Grade | IC808 |
| Coating | TiAlN/AlTiN/TiN |
| Inscribed Circle (mm) | 8.30 |
| Inscribed Circle (Decimal Inch) | 0.3270 |
| Thickness (mm) | 3.00 |
| Thickness (Decimal Inch) | 0.1180 |
| Corner Radius (Decimal Inch) | 0.0200 |
| Corner Radius (mm) | 0.50 |
| Coating Process | PVD |
| Shape | Square |
| Chipbreaker | MM |
| Maximum Depth of Cut (mm) | 2.60 |
| Maximum Depth of Cut (Decimal Inch) | 0.1020 |
| Manufacturers Catalog Number | IQ845 SYHU 0503ADN-MM |
| ISO Number | IQ845 SYHU 0503ADN-MM |
| ANSI Number | IQ845 SYHU 0503ADN-MM |
