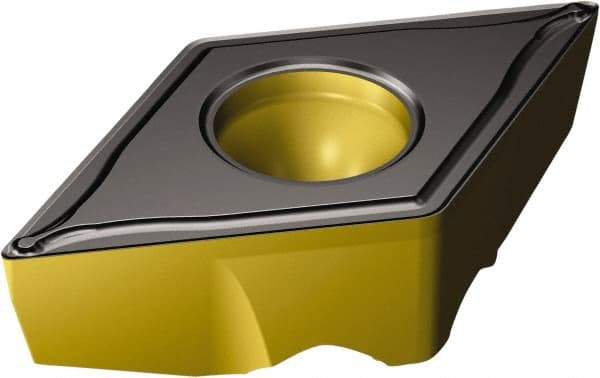

Sandvik Coromant - TRDC1308 M Grade 2220 Carbide Turning Insert - TiCN/AI2O3/TiN Finish, Diamond, 11mm Inscr Circle, 5.53mm Thick, 1/32" Corner Radius
Item #: 32605313
Brand: Sandvik Coromant
Model #: 7231478
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TRDC |
| Insert Size | 1308 |
| Material | Carbide |
| Inscribed Circle (mm) | 11.00 |
| Inscribed Circle (Decimal Inch) | 0.4331 |
| Thickness (Decimal Inch) | 0.2175 |
| Thickness (mm) | 5.53 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (mm) | 0.7938 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Manufacturer's Grade | 2220 |
| Coating | TiCN/AI2O3/TiN |
| Chip Breaker | M |
| ISO Number | TR-DC1308-M 2220 |
| Relief Angle | 7 |
| Coating Process | CVD |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | CoroTurn TR |
| Insert Holding Method | Screw |
| Shape | Diamond |
