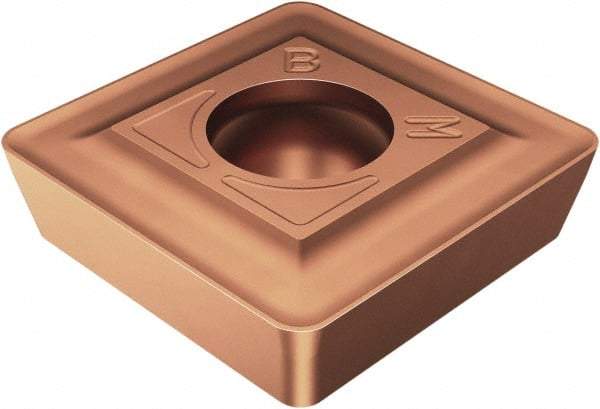

Sandvik Coromant - SPMT1210 BM Grade 1145 Carbide Boring Insert - TiAlN/TiN Finish, 90° Square, 11° Relief Angle, 12.65mm Inscr Circle, 4mm Thick, 1mm Corner Radius
Item #: 32593279
Brand: Sandvik Coromant
Model #: 7207491
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, steel, plastic and other tough-to-machine materials. Application is determined by material grade.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | SPMT |
| Insert Size | 1210 |
| Manufacturer's Grade | 1145 |
| Inscribed Circle (mm) | 12.65 |
| Inscribed Circle (Decimal Inch) | 0.4980 |
| Thickness (mm) | 4.00 |
| Thickness (Decimal Inch) | 0.1575 |
| Corner Radius (mm) | 1.00 |
| Corner Radius (Decimal Inch) | 0.0394 |
| Coating | TiAlN/TiN |
| Chipbreaker | BM |
| Relief Angle | 11 |
| Included Angle | 90 |
| ISO Number | SPMT1210-BM 1145 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Coating Process | PVD |
| Series | CoroBore 111 |
| Insert Holding Method | Screw |
| Shape | Square |
