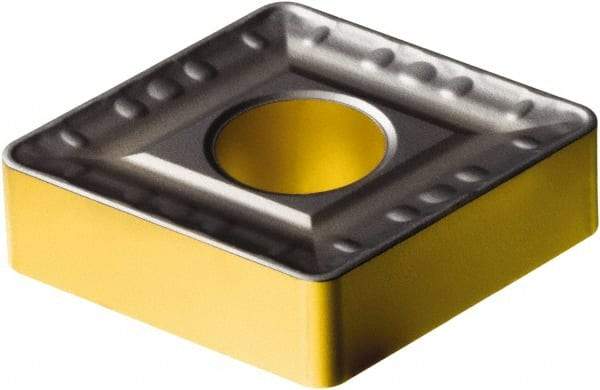

Sandvik Coromant - CNMM868 HR Grade 4335 Carbide Turning Insert - TiCN/AI2O3/TiN Finish, 80° Diamond, 1" Inscr Circle, 3/8" Thick, 1/8" Corner Radius
Item #: 32592859
Brand: Sandvik Coromant
Model #: 7081088
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | CNMM |
| Insert Size | 868 |
| Material | Carbide |
| Inscribed Circle (mm) | 25.40 |
| Inscribed Circle (Decimal Inch) | 1.0000 |
| Inscribed Circle (Inch) | 1 |
| Thickness (Inch) | 3/8 |
| Thickness (Decimal Inch) | 0.3750 |
| Thickness (mm) | 9.53 |
| Corner Radius (Inch) | 1/8 |
| Corner Radius (mm) | 3.175 |
| Corner Radius (Decimal Inch) | 0.1250 |
| Manufacturer's Grade | 4335 |
| Coating | TiCN/AI2O3/TiN |
| Chip Breaker | HR |
| ISO Number | CNMM 25 09 32-HR 4335 |
| Relief Angle | 0 |
| Coating Process | CVD |
| Included Angle | 80 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | T-Max P |
| Insert Holding Method | Pin & Clamp |
| Shape | Diamond |
