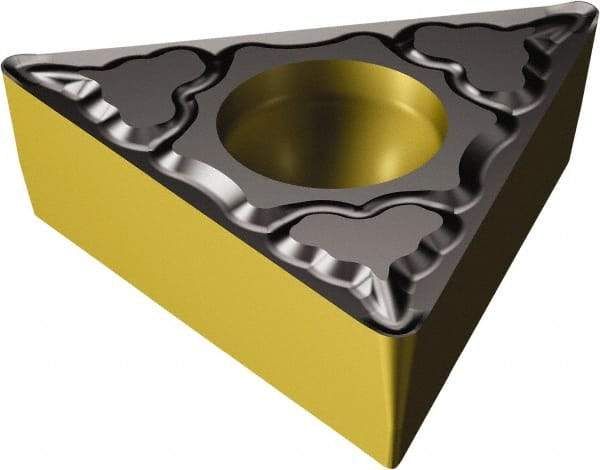

Sandvik Coromant - TCMT1.81.51 PM Grade 4335 Carbide Turning Insert - TiCN/AI2O3/TiN Finish, 60° Triangle, 5.71mm Inscr Circle, 3/32" Thick, 1/64" Corner Radius
Item #: 32586513
Brand: Sandvik Coromant
Model #: 7080710
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TCMT |
| Insert Size | 1.81.51 |
| Material | Carbide |
| Inscribed Circle (mm) | 5.71 |
| Inscribed Circle (Decimal Inch) | 0.2250 |
| Thickness (Inch) | 3/32 |
| Thickness (Decimal Inch) | 0.0937 |
| Thickness (mm) | 2.38 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (mm) | 0.3969 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | 4335 |
| Coating | TiCN/AI2O3/TiN |
| Chip Breaker | PM |
| ISO Number | TCMT 09 02 04-PM 4335 |
| Relief Angle | 7 |
| Coating Process | CVD |
| Included Angle | 60 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | CoroTurn 107 |
| Insert Holding Method | Screw |
| Shape | Triangle |
