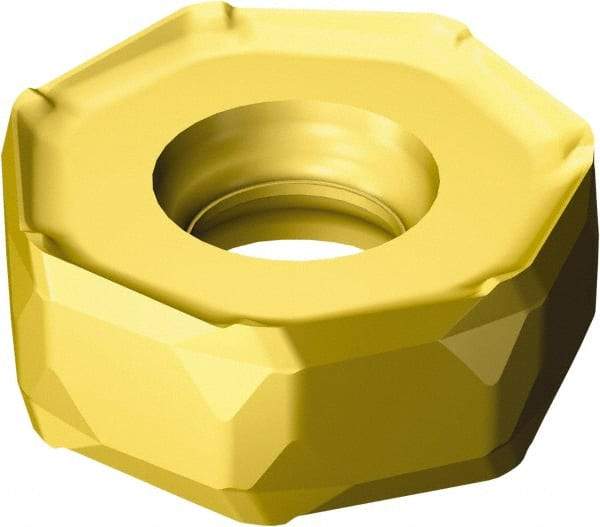

Sandvik Coromant - 745R2109 M31 Grade S40T Carbide Milling Insert - TiCN/Al2O3/TiN Finish, 9mm Thick, 21mm Inscribed Circle, 1mm Corner Radius
Item #: 32585804
Brand: Sandvik Coromant
Model #: 7243018
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | 745R |
| Insert Size | 2109 |
| Material | Carbide |
| Manufacturer's Grade | S40T |
| Coating | TiCN/Al2O3/TiN |
| Inscribed Circle (mm) | 21.00 |
| Inscribed Circle (Decimal Inch) | 0.8268 |
| Thickness (mm) | 9.00 |
| Thickness (Decimal Inch) | 0.3543 |
| Corner Radius (Decimal Inch) | 0.0394 |
| Corner Radius (mm) | 1.00 |
| Coating Process | CVD |
| Insert Hand | Right Hand |
| Chipbreaker | M31 |
| ISO Number | 745R-2109E-M31 S40T |
