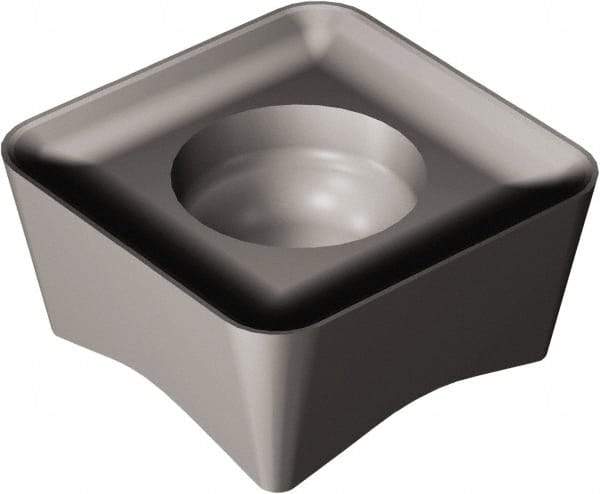

Sandvik Coromant - 415N050206 M30 Grade 1010 Carbide Milling Insert - TiAlN2 Finish, 2.21mm Thick, 5mm Inscribed Circle
Item #: 32583593
Brand: Sandvik Coromant
Model #: 7082567
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | 415N |
| Insert Size | 050206 |
| Material | Carbide |
| Manufacturer's Grade | 1010 |
| Coating | TiAlN2 |
| Inscribed Circle (mm) | 5.00 |
| Inscribed Circle (Decimal Inch) | 0.1969 |
| Thickness (mm) | 2.21 |
| Thickness (Decimal Inch) | 0.0870 |
| Relief Angle | 11.000 |
| Coating Process | PVD |
| Shape | Square |
| Insert Hand | Neutral |
| Chipbreaker | M30 |
| ISO Number | 415N-050206M-M30 1010 |
