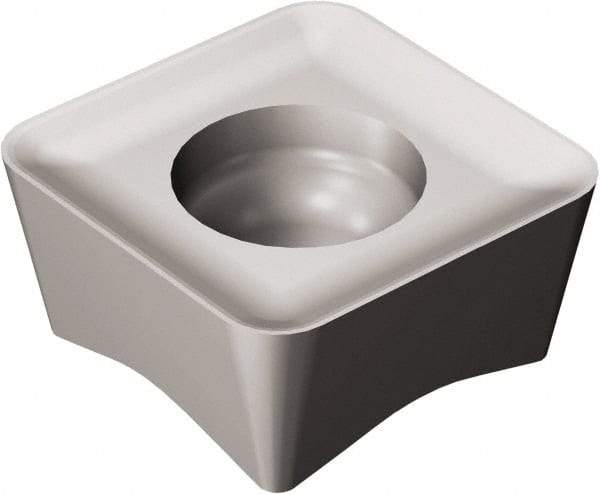

Sandvik Coromant - 415N070310 M30 Grade S30T Carbide Milling Insert - TiAlN2 Finish, 3.07mm Thick, 7mm Inscribed Circle
Item #: 32448672
Brand: Sandvik Coromant
Model #: 7082597
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | 415N |
| Insert Size | 070310 |
| Material | Carbide |
| Manufacturer's Grade | S30T |
| Coating | TiAlN2 |
| Inscribed Circle (mm) | 7.00 |
| Inscribed Circle (Decimal Inch) | 0.2756 |
| Thickness (mm) | 3.07 |
| Thickness (Decimal Inch) | 0.1209 |
| Relief Angle | 11.000 |
| Coating Process | PVD |
| Shape | Square |
| Insert Hand | Neutral |
| Chipbreaker | M30 |
| ISO Number | 415N-070310M-M30 S30T |
