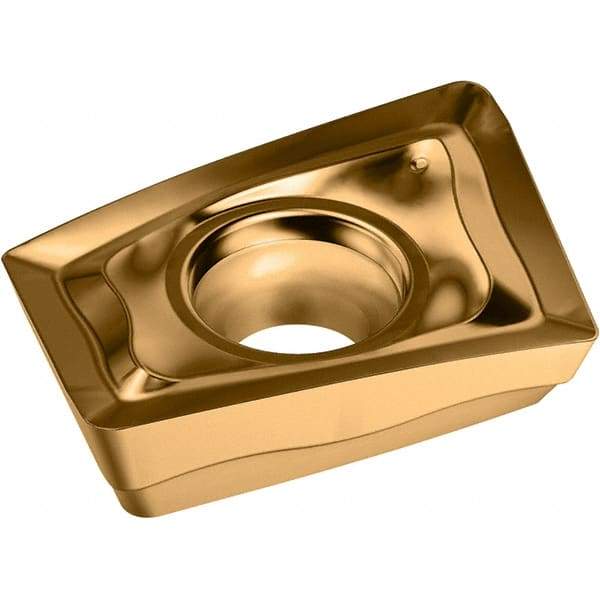

Walter - F57 Grade WKP35G Milling Insert - 4.92mm Thick, 11.78mm Inscribed Circle, 0.8mm Corner Radius
Item #: 32295131
Brand: Walter
Model #: 7170556
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Manufacturer's Grade | WKP35G |
| Width (mm) | 11.78 |
| Width (Decimal Inch) | 0.4640 |
| Length (mm) | 17.24 |
| Length (Decimal Inch) | 0.6790 |
| Inscribed Circle (mm) | 11.78 |
| Inscribed Circle (Decimal Inch) | 0.4640 |
| Thickness (mm) | 4.92 |
| Thickness (Decimal Inch) | 0.1940 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Corner Radius (mm) | 0.80 |
| Hole Diameter (mm) | 4.40 |
| Hole Diameter (Decimal Inch) | 0.1730 |
| Relief Angle | 15.000 |
| Coating Process | CVD |
| Insert Hand | Right Hand |
| Chipbreaker | F57 |
| Maximum Depth of Cut (mm) | 17.24 |
| Maximum Depth of Cut (Decimal Inch) | 0.6790 |
| Manufacturers Catalog Number | LDMT170408R-F57 WKP35G |
