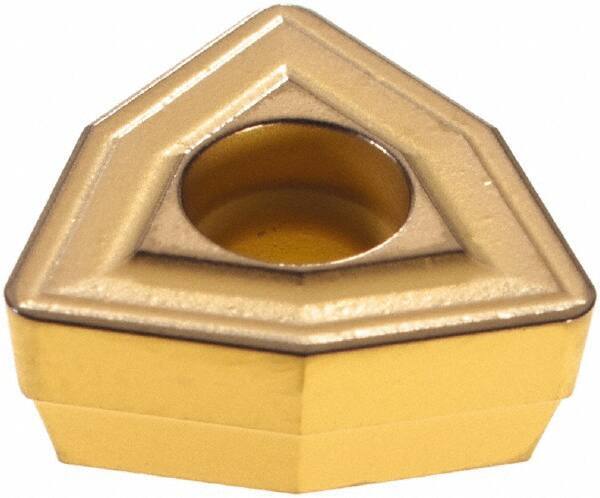

Komet - WOEX05T308 01 Grade BK6420 Carbide Indexable Drill Insert - TiCN/Al2O3/TiN Finish, Trigon, 8mm Inscribed Circle
Item #: 32091381
Brand: Komet
Model #: W2924010086420
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | WOEX |
| Insert Size | 05T308 |
| Material | Carbide |
| Manufacturer's Grade | BK6420 |
| Inscribed Circle (mm) | 8.00 |
| Inscribed Circle (Decimal Inch) | 0.3150 |
| Thickness (mm) | 3.80 |
| Thickness (Decimal Inch) | 0.1496 |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Shape | Trigon |
| Length (mm) | 5.30 |
| Length (Decimal Inch) | 0.2087 |
| Relief Angle | 8 |
| Included Angle | 84 |
| Coating | TiCN/Al2O3/TiN |
| Coating Process | CVD |
| Cutting Direction | Neutral |
| Chipbreaker | 01 |
