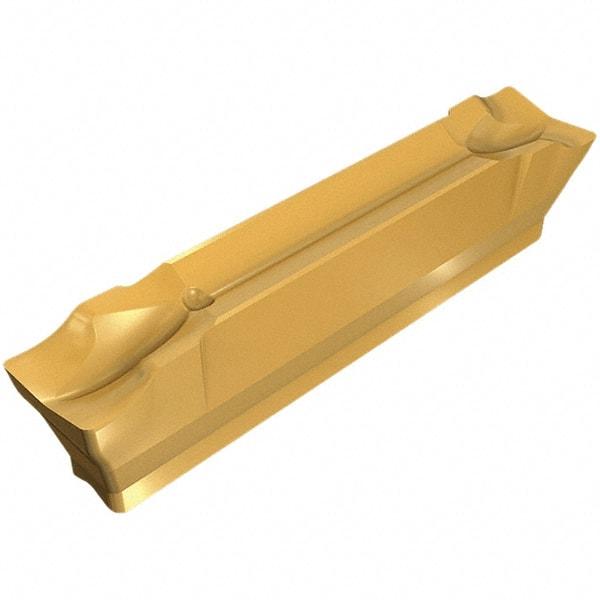

Iscar - HGN3002 J IC830 Grade, 0.118" Cutting Width, Carbide Cutoff Insert - Neutral Lead Angle, 0.008" Cnr Rad, TiAlN Coated, Double End
Item #: 32083370
Brand: Iscar
Model #: 6004494
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | HGN |
| Insert Size | 3002 |
| Lead Angle Direction | Neutral |
| Cutting Width (mm) | 3.00 |
| Cutting Width (Decimal Inch) | 0.1180 |
| Manufacturer's Grade | IC830 |
| Coating | TiAlN |
| Series | Do-Grip |
| Relief Angle | 7 |
| Chipbreaker | J |
| Coating Process | PVD |
| Overall Length (mm) | 16.10 |
| Overall Length (Decimal Inch) | 0.6339 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Corner Radius (mm) | 0.20 |
| Insert Holding Method | Clamp |
| Insert Seat Size | 2 |
