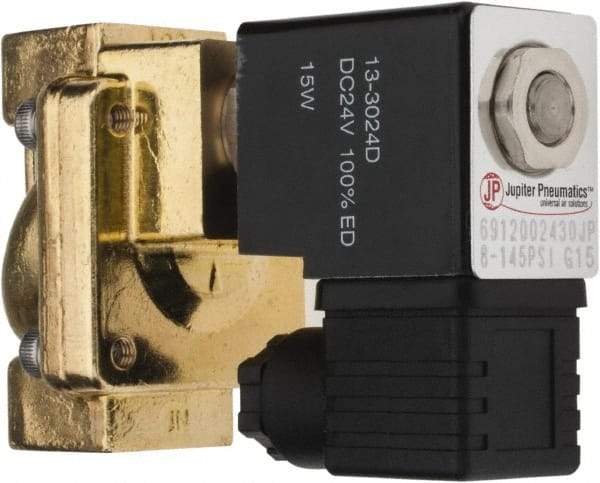

PRO-SOURCE - 1/2", 2/2 Way Stacking Solenoid Valve - 24 VDC, 4.5 CV Rate, 4.19" High x 2.83" Long
Item #: 31880495
Brand: PRO-SOURCE
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | 2/2 Way |
| Actuator Type | Pilot |
| Number of Positions | 2 |
| Number of Positions | 2 Position Normally Closed |
| Valve Type | 2-Way |
| Return Type | Air Pilot |
| Voltage | 24 VDC |
| CV Rating | 4.500 |
| Inlet Size (Inch) | 1/2 |
| Outlet Size (Inch) | 1/2 |
| Cubic Feet per Minute | 96.16 |
| Length (Decimal Inch) | 2.830 |
| Height (Inch) | 4.19 |
| Maximum Temperature (F) | 194 |
| Maximum Working Pressure (psi) | 145 |
| For Use With | Compressed Air; Light Oil; Water |
