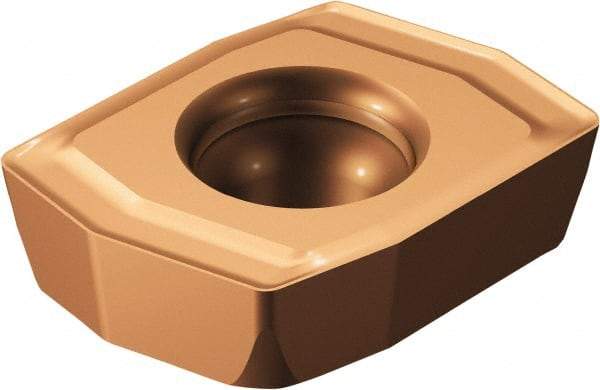

Sandvik Coromant - 88001C LM Grade 1044 Carbide Indexable Drill Insert - TiAlN Finish, Rectangle, 4.8mm Inscribed Circle
Item #: 31858822
Brand: Sandvik Coromant
Model #: 5765558
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat-resistant and used for high-speed applications on stainless steels, nickel and titanium alloys.
| Product Specifications | |
|---|---|
| Insert Style | 880 |
| Insert Size | 01C |
| Material | Carbide |
| Manufacturer's Grade | 1044 |
| Inscribed Circle (mm) | 4.80 |
| Inscribed Circle (Decimal Inch) | 0.1890 |
| Thickness (mm) | 2.20 |
| Thickness (Decimal Inch) | 0.0866 |
| Corner Radius (mm) | 0.30 |
| Corner Radius (Decimal Inch) | 0.0118 |
| Shape | Rectangle |
| Width (Decimal Inch) | 0.1890 |
| Width (mm) | 4.80 |
| Hole Diameter (mm) | 2.20 |
| Hole Diameter (Decimal Inch) | 0.0866 |
| Coating | TiAlN |
| Coating Process | PVD |
| Chipbreaker | LM |
