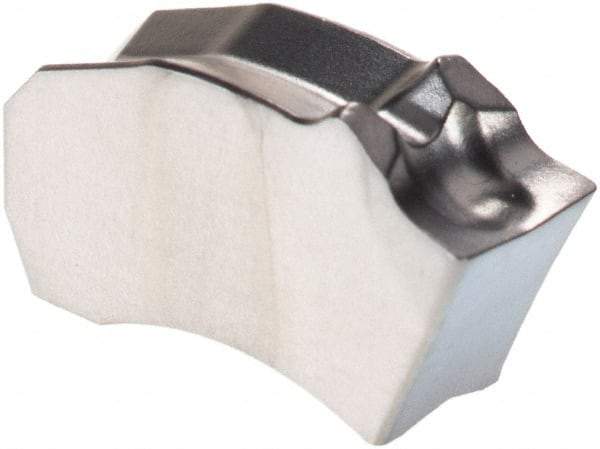

Walter - 4SX CF5 Grade WSM33S, 4mm Cutting Width Carbide Grooving Insert - 50mm Max Depth of Cut, Neutral, 0.2mm Corner Radius, Al2O3/TiN Finish
Item #: 31781099
Brand: Walter
Model #: 6646223
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SX |
| Insert Size | 4 |
| Material | Carbide |
| Cutting Width (mm) | 4.00 |
| Cutting Width (Decimal Inch) | 0.1570 |
| Maximum Depth of Cut (mm) | 50.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.9690 |
| Manufacturer's Grade | WSM33S |
| Coating | Al2O3/TiN |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Cutting Height (mm) | 4.98 |
| Cutting Height (Decimal Inch) | 0.1960 |
| Lead Angle | 90 |
| Chipbreaker | CF5 |
| Multi-Use Tool | Yes |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Coating Process | PVD |
| Overall Length (mm) | 12.30 |
| Overall Length (Decimal Inch) | 0.4840 |
| Series | SX |
| Rake | Positive |
| Overall Width (mm) | 4.00 |
| Overall Width (Decimal Inch) | 0.1570 |
