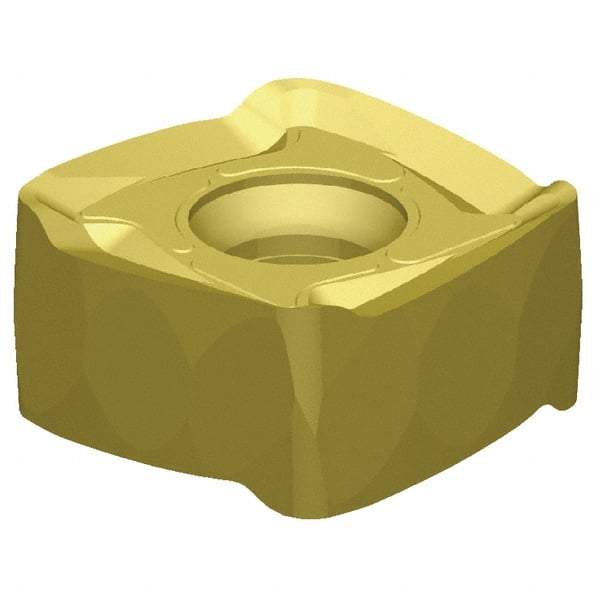

Kennametal - XOGU120512 GU52 Grade SP6519 Carbide Milling Insert - TiAlN Finish, 5.56mm Thick, 1/2" Inscribed Circle, 1.2mm Corner Radius
Item #: 31701410
Brand: Kennametal
Model #: 5652817
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | XOGU |
| Insert Size | 120512 |
| Material | Carbide |
| Manufacturer's Grade | SP6519 |
| Coating | TiAlN |
| Width (Inch) | 1/2 |
| Length (mm) | 11.99 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (mm) | 5.56 |
| Corner Radius (mm) | 1.20 |
| Hole Diameter (mm) | 4.40 |
| Coating Process | PVD |
| Shape | Square |
| Insert Hand | Right Hand |
| Chipbreaker | GU52 |
