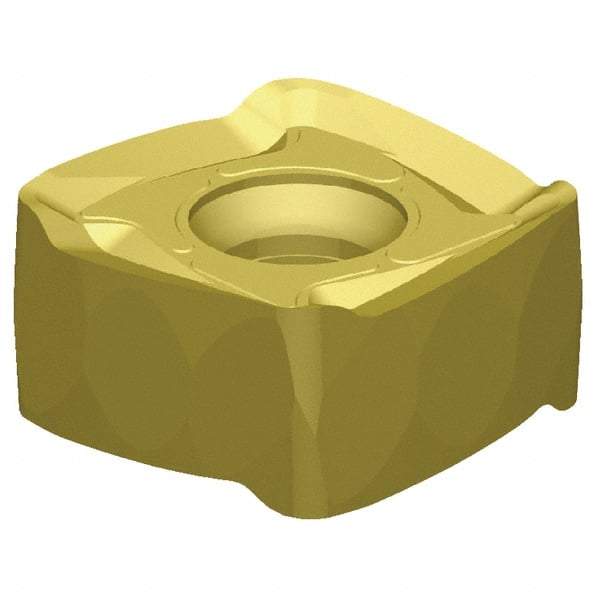

Kennametal - XOGU120512 GU52 Grade SC6525 Carbide Milling Insert - Al2O3 Finish, 5.56mm Thick, 1/2" Inscribed Circle, 1.2mm Corner Radius
Item #: 31701048
Brand: Kennametal
Model #: 5652818
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | XOGU |
| Insert Size | 120512 |
| Material | Carbide |
| Manufacturer's Grade | SC6525 |
| Coating | Al2O3 |
| Width (Inch) | 1/2 |
| Length (mm) | 11.99 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (mm) | 5.56 |
| Corner Radius (mm) | 1.20 |
| Hole Diameter (mm) | 4.40 |
| Coating Process | CVD |
| Shape | Square |
| Insert Hand | Right Hand |
| Chipbreaker | GU52 |
