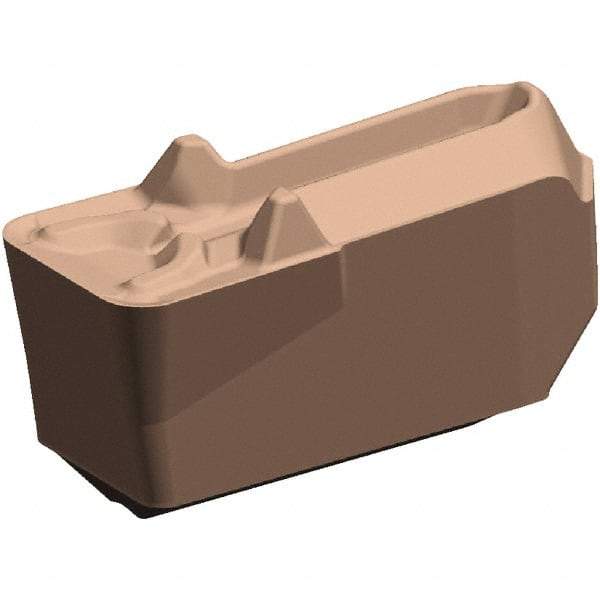

Kennametal - 3EG GUN Grade KCU10, 1/8" Cutting Width Carbide Grooving Insert - 0.091" Max Depth of Cut, Neutral, 0.008" Corner Radius, AlTiN Finish
Item #: 31680796
Brand: Kennametal
Model #: 6231687
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | EG |
| Insert Size | 3 |
| Material | Carbide |
| Cutting Width (Inch) | 1/8 |
| Maximum Depth of Cut (Decimal Inch) | 0.0910 |
| Manufacturer's Grade | KCU10 |
| Coating | AlTiN |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Cutting Height (Decimal Inch) | 0.1580 |
| Relief Angle | 2.25 |
| Insert Seat Size | 3 |
| Chipbreaker | GUN |
| Corner Radius (Decimal Inch) | 0.0080 |
| Coating Process | PVD |
| Series | Beyond Evolution |
| Rake Angle | 14 |
| Insert Thickness (Decimal Inch) | 0.1580 |
