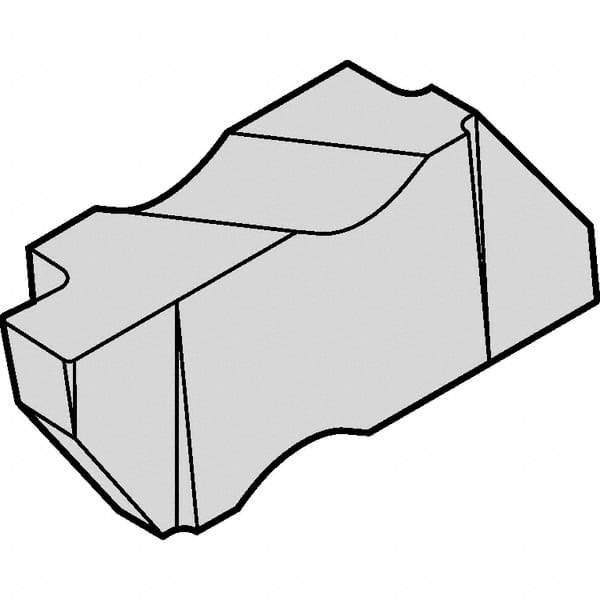

Kennametal - 4NG Grade KCK20B, 0.189" Cutting Width Carbide Grooving Insert - 1/4" Max Depth of Cut, Left Hand, 0.0225" Corner Radius, Al2O3 Finish
Item #: 31680663
Brand: Kennametal
Model #: 6228198
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | NG |
| Insert Size | 4 |
| Material | Carbide |
| Cutting Width (Decimal Inch) | 0.1890 |
| Maximum Depth of Cut (Inch) | 1/4 |
| Manufacturer's Grade | KCK20B |
| Coating | Al2O3 |
| Cutting Direction | Left Hand |
| Insert Hand | Left Hand |
| Cutting Height (Decimal Inch) | 0.4530 |
| Relief Angle | 3 |
| Insert Seat Size | 4 |
| Corner Radius (Decimal Inch) | 0.0225 |
| Coating Process | MT-CVD |
| Series | Top Notch |
| Rake Angle | 0 |
| Insert Thickness (Decimal Inch) | 0.4530 |
