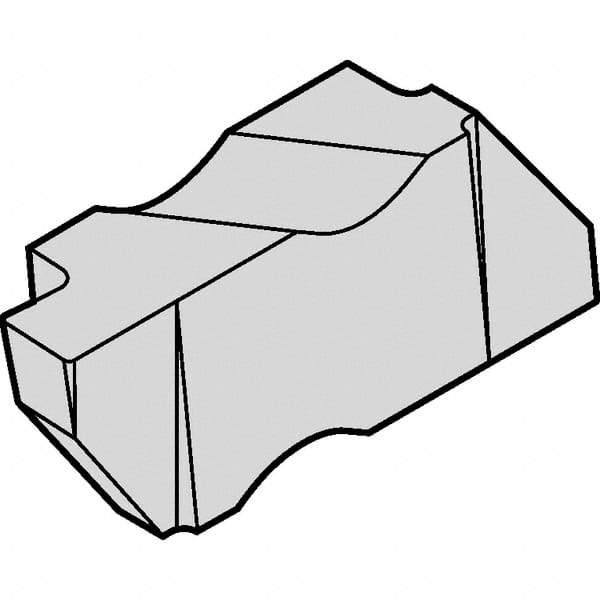

Kennametal - 3NG Grade KCK20B, 1/8" Cutting Width Carbide Grooving Insert - 0.15" Max Depth of Cut, Left Hand, 0.0075" Corner Radius, Al2O3 Finish
Item #: 31680648
Brand: Kennametal
Model #: 6228192
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | NG |
| Insert Size | 3 |
| Material | Carbide |
| Cutting Width (Inch) | 1/8 |
| Maximum Depth of Cut (Decimal Inch) | 0.1500 |
| Manufacturer's Grade | KCK20B |
| Coating | Al2O3 |
| Cutting Direction | Left Hand |
| Insert Hand | Left Hand |
| Cutting Height (Decimal Inch) | 0.3440 |
| Relief Angle | 3 |
| Insert Seat Size | 3 |
| Corner Radius (Decimal Inch) | 0.0075 |
| Coating Process | MT-CVD |
| Series | Top Notch |
| Rake Angle | 0 |
| Insert Thickness (Decimal Inch) | 0.3440 |
