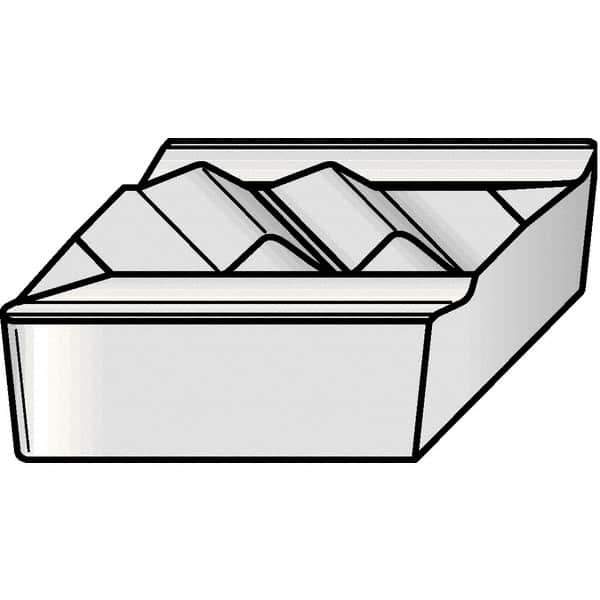

Kennametal - NPR5M05, KCP25B Grade Carbide Profiling Insert - TiOCN Finish, 55° Incl Angle, Diamond, 1/8" Thick, 0.5mm Corner Radius
Item #: 31582000
Brand: Kennametal
Model #: 6181216
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | NPR |
| Insert Size | 5M05 |
| Manufacturer's Grade | KCP25B |
| Width (Inch) | 1/4 |
| Thickness (Inch) | 1/8 |
| Insert Height (Decimal Inch) | 0.1250 |
| Corner Radius (mm) | 0.50 |
| Relief Angle | 8 |
| Coating | TiOCN |
| Insert Length (Decimal Inch) | 0.4566 |
| Coating Process | CVD |
| Included Angle | 55 |
| Insert Hand | Right Hand |
| Series | Top Notch |
| Insert Holding Method | Clamp |
| Shape | Diamond |
