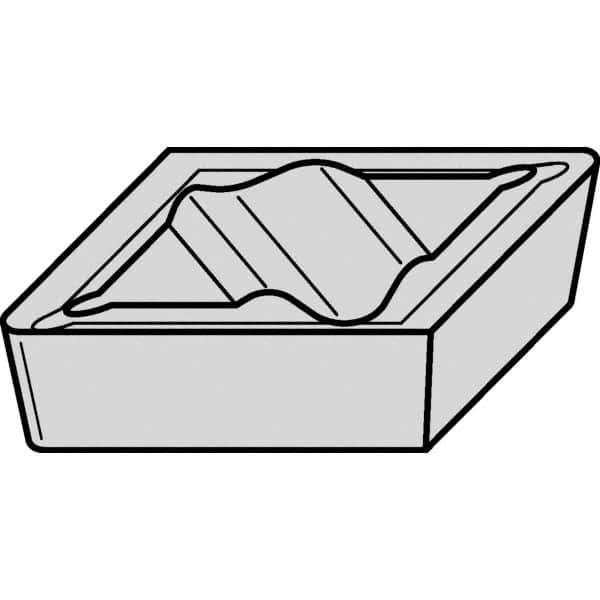

Kennametal - NPGR52, KCM15B Grade Carbide Profiling Insert - TiOCN Finish, 55° Incl Angle, Diamond, 1/8" Thick, 1/32" Corner Radius
Item #: 31581986
Brand: Kennametal
Model #: 6088651
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | NPGR |
| Insert Size | 52 |
| Manufacturer's Grade | KCM15B |
| Width (Inch) | 1/4 |
| Thickness (Inch) | 1/8 |
| Insert Height (Decimal Inch) | 0.1250 |
| Corner Radius (Inch) | 1/32 |
| Relief Angle | 8 |
| Coating | TiOCN |
| Insert Length (Decimal Inch) | 0.4566 |
| Coating Process | CVD |
| Included Angle | 55 |
| Insert Hand | Left Hand |
| Series | Top Notch |
| Insert Holding Method | Clamp |
| Shape | Diamond |
