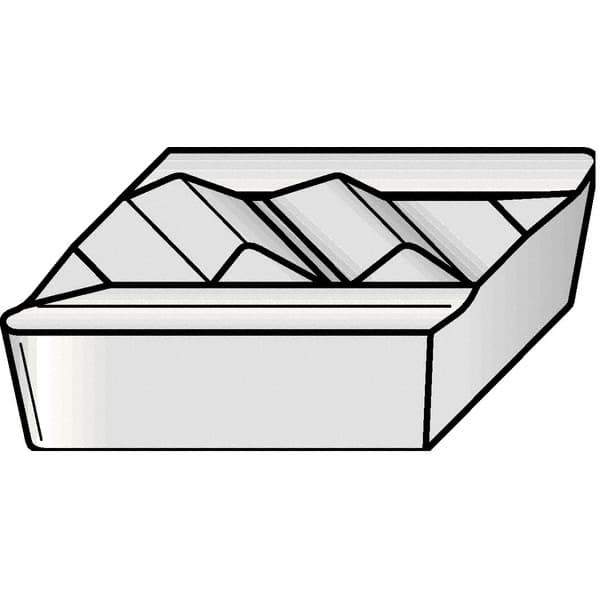

Kennametal - NPR13M05, KCP25B Grade Carbide Profiling Insert - TiOCN Finish, 55° Incl Angle, Diamond, 3/16" Thick, 0.5mm Corner Radius
Item #: 31581911
Brand: Kennametal
Model #: 6181214
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | NPR |
| Insert Size | 13M05 |
| Manufacturer's Grade | KCP25B |
| Width (Inch) | 3/8 |
| Thickness (Inch) | 3/16 |
| Insert Height (Decimal Inch) | 0.1875 |
| Corner Radius (mm) | 0.50 |
| Relief Angle | 0 |
| Coating | TiOCN |
| Insert Length (Decimal Inch) | 0.6080 |
| Coating Process | CVD |
| Included Angle | 55 |
| Insert Hand | Right Hand |
| Series | Top Notch |
| Insert Holding Method | Clamp |
| Shape | Diamond |
