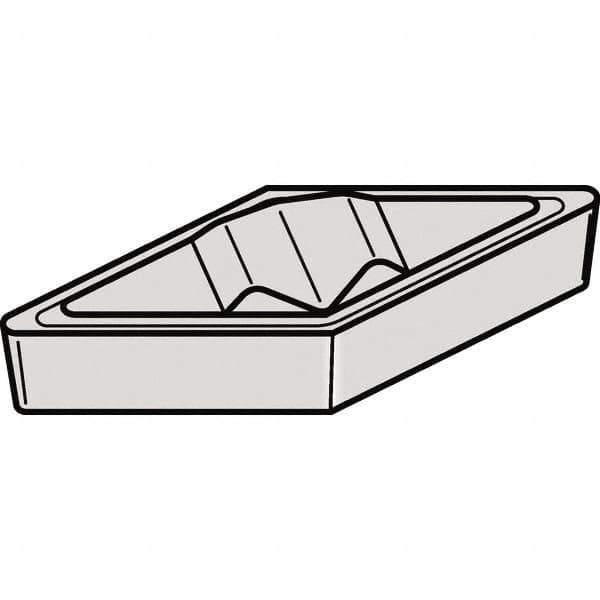

Kennametal - VPGR332, KCP25B Grade Carbide Profiling Insert - TiOCN Finish, 35° Incl Angle, Diamond, 3/16" Thick, 1/32" Corner Radius, 3/8" Inscribed Circle
Item #: 31581895
Brand: Kennametal
Model #: 6083097
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | VPGR |
| Insert Size | 332 |
| Manufacturer's Grade | KCP25B |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 3/16 |
| Insert Height (Decimal Inch) | 0.1875 |
| Corner Radius (Inch) | 1/32 |
| Relief Angle | 8 |
| Coating | TiOCN |
| Insert Length (Decimal Inch) | 0.6540 |
| Coating Process | CVD |
| Included Angle | 35 |
| Insert Hand | Neutral |
| Series | Top Notch |
| Insert Holding Method | Clamp |
| Shape | Diamond |
