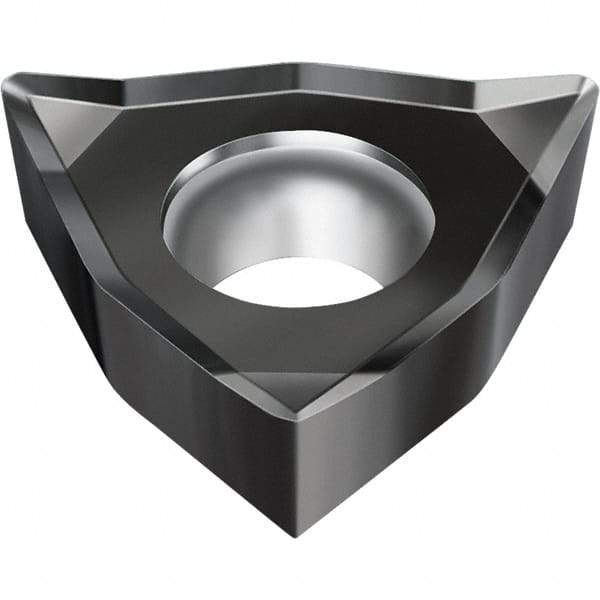

Walter - WCGT32.50.5 MN2 Grade WNN10 Carbide Turning Insert - Proprietary Finish, 80° Trigon, 3/8" Inscr Circle, 5/32" Thick, 0.008" Corner Radius
Item #: 31005390
Brand: Walter
Model #: 6955736
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | WCGT |
| Insert Size | 32.50.5 |
| Material | Carbide |
| Length (Decimal Inch) | 0.2570 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 5/32 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Manufacturer's Grade | WNN10 |
| Coating | Proprietary |
| Chip Breaker | MN2 |
| Insert Length (Decimal Inch) | 0.2570 |
| Overall Length (Decimal Inch) | 0.2570 |
| Hole Diameter (Decimal Inch) | 0.1730 |
| ISO Number | WCGT06T302-MN2 WNN10 |
| Relief Angle | 7 |
| Coating Process | PVD |
| Manufacturers Catalog Number | 6955736 |
| Included Angle | 80 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | WCGT |
| Maximum Depth of Cut (Decimal Inch) | 0.2570 |
| Cutting Width (mm) | 6.52 |
| Shape | Trigon |
