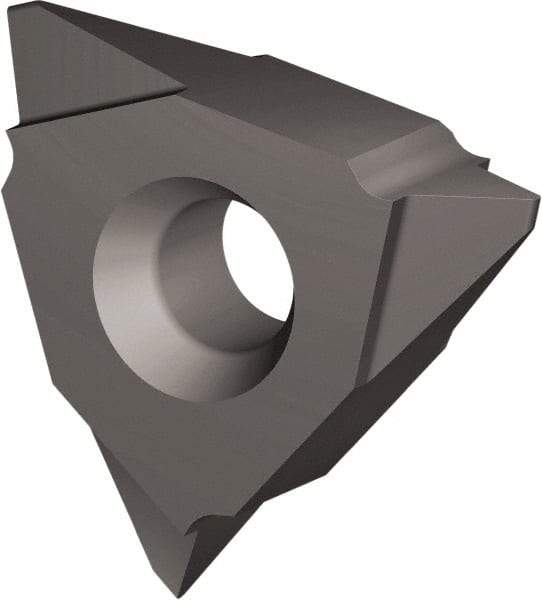

Vargus - 3VEL16 Partial Profile 60° Grade VTX External On Edge Threading Insert - TiAlN Finish, 3/8" Inscribed Circle, Left Hand Cut
Item #: 30923999
Brand: Vargus
Model #: 62035
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | 3VEL |
| Insert Size | 16 |
| Thread Type | External |
| Cutting Direction | Left Hand |
| Thread Standard | Partial Profile 60 |
| Manufacturer's Grade | VTX |
| External Pitch (mm) | 1.5 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Thickness (Decimal Inch) | 0.1417 |
| Rake | Positive |
| Material | Carbide |
| Coating | TiAlN |
| Hole Diameter (Decimal Inch) | 0.1516 |
| Material Grade | Micrograin |
| Coating Process | PVD |
| Rake Angle | 10 |
| Corner Radius (Decimal Inch) | 0.0020 |
