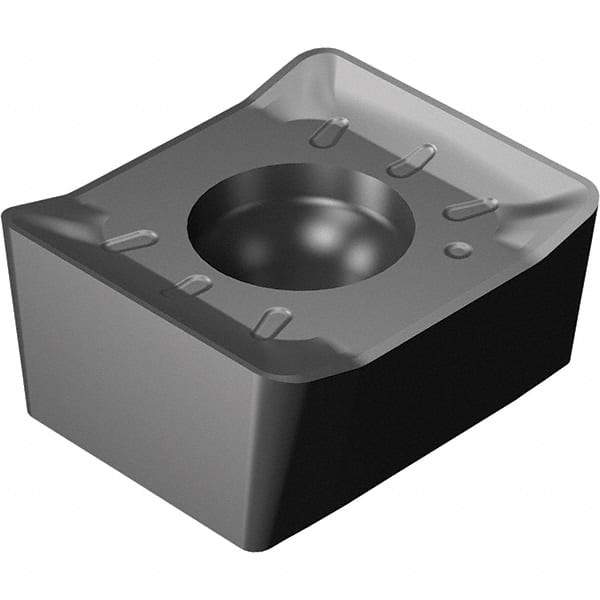

Sandvik Coromant - N331.1A11 M30 Grade 3040 Carbide Milling Insert - TiCN/Al2O3 Finish, 4.95mm Thick, 0.8mm Corner Radius
Item #: 30848907
Brand: Sandvik Coromant
Model #: 7295518
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | N331.1A |
| Insert Size | 11 |
| Material | Carbide |
| Manufacturer's Grade | 3040 |
| Coating | TiCN/Al2O3 |
| Width (mm) | 11.50 |
| Width (Decimal Inch) | 0.4528 |
| Thickness (mm) | 4.95 |
| Thickness (Decimal Inch) | 0.1949 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Primary Workpiece Material | K |
| Secondary Workpiece Material | P |
| Coating Process | CVD |
| Shape | Rectangle |
| Insert Hand | Neutral |
| Chipbreaker | M30 |
| Manufacturers Catalog Number | N331.1A-115008E-M30 3040 |
