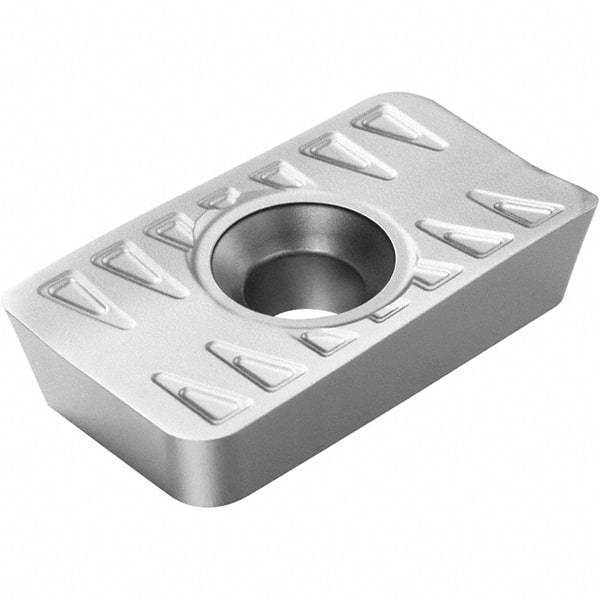

Sandvik Coromant - LPMH250610 PM Grade 1130 Carbide Milling Insert - AlTiCrN Finish, 6.35mm Thick, 0.79mm Corner Radius
Item #: 30848675
Brand: Sandvik Coromant
Model #: 7101009
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | LPMH |
| Insert Size | 250610 |
| Material | Carbide |
| Manufacturer's Grade | 1130 |
| Coating | AlTiCrN |
| Width (mm) | 14.27 |
| Width (Decimal Inch) | 0.5620 |
| Thickness (mm) | 6.35 |
| Thickness (Decimal Inch) | 0.2500 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Corner Radius (mm) | 0.79 |
| Primary Workpiece Material | P |
| Secondary Workpiece Material | M |
| Coating Process | PVD |
| Shape | Rectangle |
| Insert Hand | Right Hand |
| Chipbreaker | PM |
| Manufacturers Catalog Number | LPMH 25 06 10-PM 1130 |
