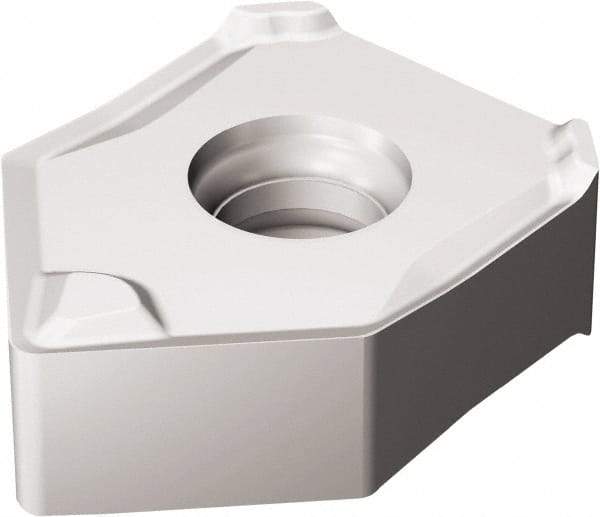

Sandvik Coromant - 345N1305 PW8 Grade 1130 Carbide Milling Insert - AlTiCrN Finish, 5.6mm Thick, 13mm Inscribed Circle, 1mm Corner Radius
Item #: 30848568
Brand: Sandvik Coromant
Model #: 7101106
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | 345N |
| Insert Size | 1305 |
| Material | Carbide |
| Manufacturer's Grade | 1130 |
| Coating | AlTiCrN |
| Inscribed Circle (mm) | 13.00 |
| Inscribed Circle (Decimal Inch) | 0.5118 |
| Thickness (mm) | 5.60 |
| Thickness (Decimal Inch) | 0.2205 |
| Corner Radius (Decimal Inch) | 0.0394 |
| Corner Radius (mm) | 1.00 |
| Coating Process | PVD |
| Shape | Square |
| Insert Hand | Neutral |
| Chipbreaker | PW8 |
| Manufacturers Catalog Number | 345N-1305E-PW8 1130 |
