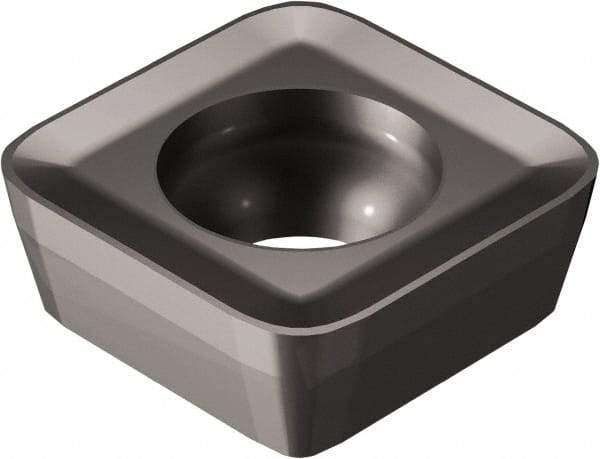

Sandvik Coromant - R2101405 PM Grade 1130 Carbide Milling Insert - AlTiCrN Finish, 5.26mm Thick, 14.6mm Inscribed Circle, 1.4mm Corner Radius
Item #: 30848402
Brand: Sandvik Coromant
Model #: 7100937
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | R210 |
| Insert Size | 1405 |
| Material | Carbide |
| Manufacturer's Grade | 1130 |
| Coating | AlTiCrN |
| Inscribed Circle (mm) | 14.60 |
| Inscribed Circle (Decimal Inch) | 0.5748 |
| Thickness (mm) | 5.26 |
| Thickness (Decimal Inch) | 0.2071 |
| Corner Radius (Decimal Inch) | 0.0551 |
| Corner Radius (mm) | 1.40 |
| Primary Workpiece Material | P |
| Secondary Workpiece Material | M |
| Coating Process | PVD |
| Shape | Square |
| Insert Hand | Neutral |
| Chipbreaker | PM |
| Manufacturers Catalog Number | R210-14 05 14E-PM 1130 |
