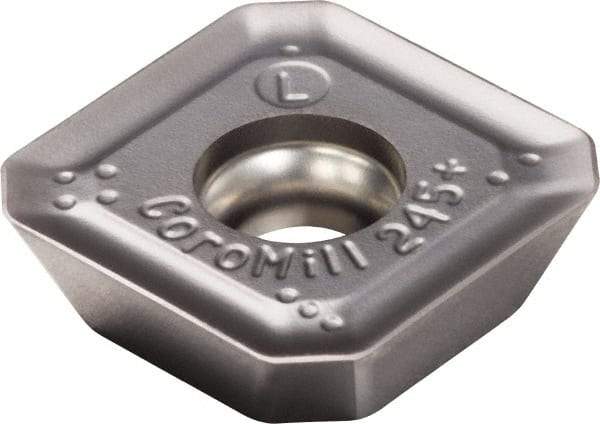

Sandvik Coromant - R24512T3 PL Grade 1130 Carbide Milling Insert - AlTiCrN Finish, 3.97mm Thick, 13.4mm Inscribed Circle, 1.5mm Corner Radius
Item #: 30848113
Brand: Sandvik Coromant
Model #: 7101116
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | R245 |
| Insert Size | 12T3 |
| Material | Carbide |
| Manufacturer's Grade | 1130 |
| Coating | AlTiCrN |
| Inscribed Circle (mm) | 13.40 |
| Thickness (mm) | 3.97 |
| Thickness (Decimal Inch) | 0.1563 |
| Corner Radius (Decimal Inch) | 0.0591 |
| Corner Radius (mm) | 1.50 |
| Primary Workpiece Material | P |
| Secondary Workpiece Material | M |
| Coating Process | PVD |
| Shape | Square |
| Insert Hand | Right Hand |
| Chipbreaker | PL |
| Manufacturers Catalog Number | R245-12 T3 E-PL 1130 |
