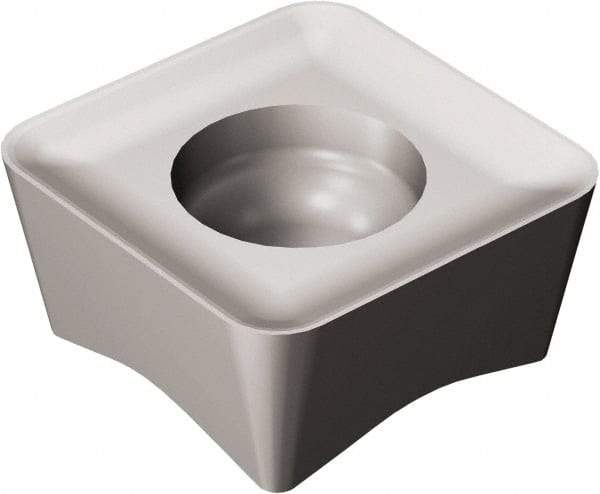

Sandvik Coromant - 415N0502 M30 Grade 1130 Carbide Milling Insert - AlTiCrN Finish, 2.21mm Thick, 5mm Inscribed Circle, 0.6mm Corner Radius
Item #: 30848097
Brand: Sandvik Coromant
Model #: 7082568
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | 415N |
| Insert Size | 0502 |
| Material | Carbide |
| Manufacturer's Grade | 1130 |
| Coating | AlTiCrN |
| Inscribed Circle (mm) | 5.00 |
| Thickness (mm) | 2.21 |
| Thickness (Decimal Inch) | 0.0870 |
| Corner Radius (Decimal Inch) | 0.0236 |
| Corner Radius (mm) | 0.60 |
| Primary Workpiece Material | M |
| Secondary Workpiece Material | P |
| Coating Process | PVD |
| Shape | Square |
| Insert Hand | Neutral |
| Chipbreaker | M30 |
| Manufacturers Catalog Number | 415N-05 02 06M-M30 1130 |
