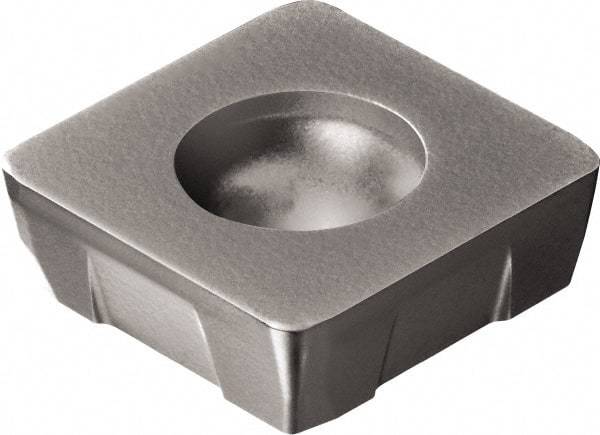

Sandvik Coromant - R2100904 PM Grade 1130 Carbide Milling Insert - AlTiCrN Finish, 4mm Thick, 9.4mm Inscribed Circle, 1mm Corner Radius
Item #: 30848063
Brand: Sandvik Coromant
Model #: 7100934
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | R210 |
| Insert Size | 0904 |
| Material | Carbide |
| Manufacturer's Grade | 1130 |
| Coating | AlTiCrN |
| Inscribed Circle (mm) | 9.40 |
| Thickness (mm) | 4.00 |
| Thickness (Decimal Inch) | 0.1575 |
| Corner Radius (Decimal Inch) | 0.0394 |
| Corner Radius (mm) | 1.00 |
| Primary Workpiece Material | P |
| Secondary Workpiece Material | M |
| Coating Process | PVD |
| Shape | Square |
| Insert Hand | Right Hand |
| Chipbreaker | PM |
| Manufacturers Catalog Number | R210-09 04 12M-PM 1130 |
