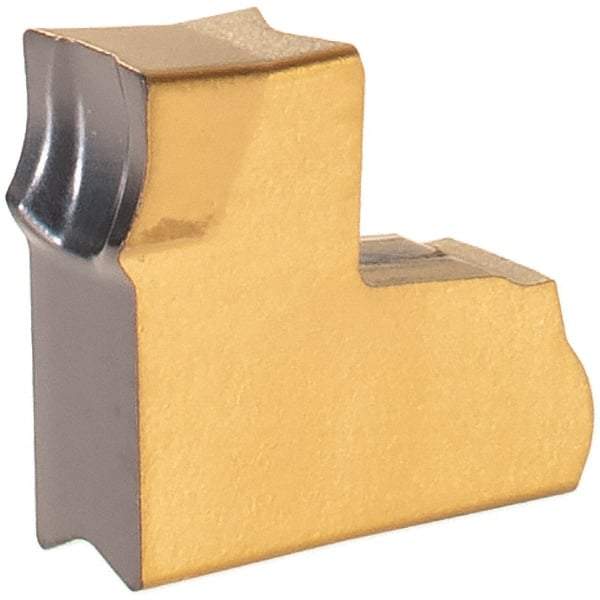

Iscar - TAG3 LF IC808 Grade, 0.12" Cutting Width, Carbide Cutoff Insert - Neutral Lead Angle, 0.008" Cnr Rad, TiAlN/AlTiN/TiN Coated, Single End
Item #: 30793640
Brand: Iscar
Model #: 6004674
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | TAG |
| Insert Size | 3 |
| Lead Angle Direction | Neutral |
| Cutting Width (mm) | 3.05 |
| Cutting Width (Decimal Inch) | 0.1200 |
| Material Grade | Fine Grain |
| Manufacturer's Grade | IC808 |
| Coating | TiAlN/AlTiN/TiN |
| Series | Tang-Grip |
| Relief Angle | 7 |
| Chipbreaker | LF |
| Full Radius | No |
| Multi-Use Application | Grooving; Milling; Parting |
| Coating Process | PVD |
| Corner Radius (Decimal Inch) | 0.0080 |
| Corner Radius (mm) | 0.20 |
