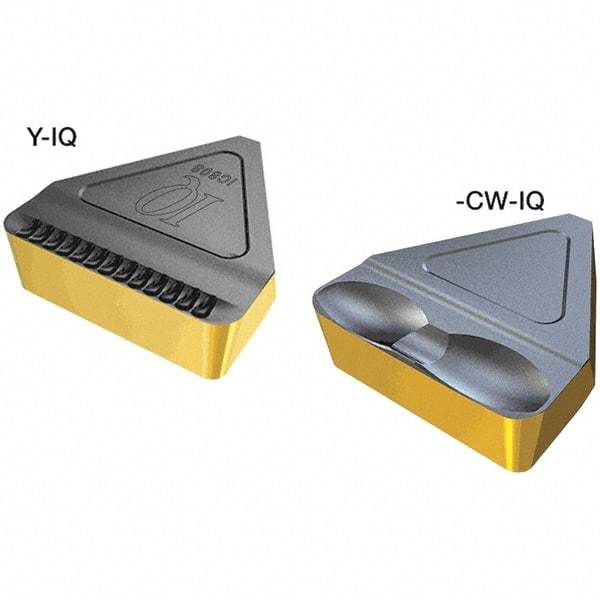

Iscar - 1212TIGER Grade IC808, 11.99mm Cutting Width Carbide Grooving Insert - Neutral, 1.19mm Corner Radius, TiAlN/AlTiN/TiN Finish
Item #: 30732184
Brand: Iscar
Model #: 6405408
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TIGER |
| Insert Size | 1212 |
| Material | Carbide |
| Cutting Width (mm) | 11.99 |
| Cutting Width (Decimal Inch) | 0.4720 |
| Material Grade | Fine-grained |
| Manufacturer's Grade | IC808 |
| Coating | TiAlN/AlTiN/TiN |
| Insert Hand | Neutral |
| Cutting Height (mm) | 5.05 |
| Cutting Height (Decimal Inch) | 0.1990 |
| Multi-Use Tool | No |
| Corner Radius (mm) | 1.19 |
| Corner Radius (Decimal Inch) | 0.0470 |
| Coating Process | PVD |
| Overall Length (mm) | 14.10 |
| Overall Length (Decimal Inch) | 0.5550 |
| Series | Cut Grip |
| Included Angle | 61 |
