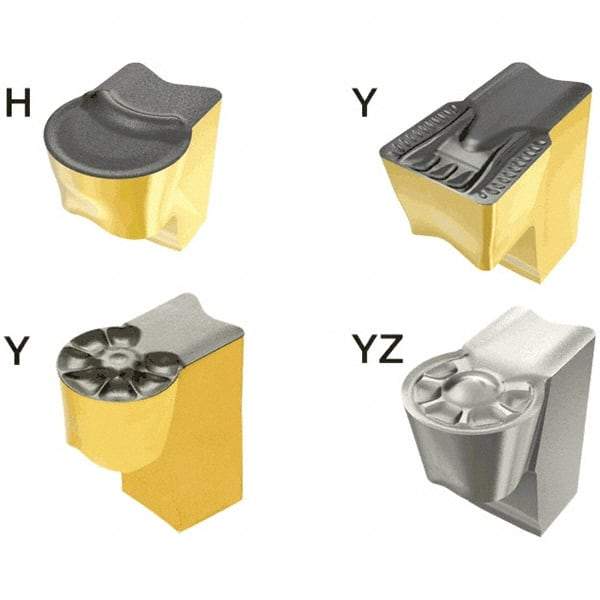

Iscar - 608TAGB B Grade IC808, 5.99mm Cutting Width Carbide Grooving Insert - 3.61mm Max Depth of Cut, Neutral, 0.79mm Corner Radius, TiAlN/AlTiN/TiN Finish
Item #: 30732119
Brand: Iscar
Model #: 6405376
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TAGB |
| Insert Size | 608 |
| Material | Carbide |
| Cutting Width (mm) | 5.99 |
| Cutting Width (Decimal Inch) | 0.2360 |
| Maximum Depth of Cut (mm) | 3.61 |
| Maximum Depth of Cut (Decimal Inch) | 0.1420 |
| Material Grade | Fine-grained |
| Manufacturer's Grade | IC808 |
| Coating | TiAlN/AlTiN/TiN |
| Insert Hand | Neutral |
| Chipbreaker | B |
| Multi-Use Tool | Yes |
| Multi-Use Application | Parting; Profiling; Turning |
| Corner Radius (mm) | 0.79 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Coating Process | PVD |
| Series | Sumo-Grip |
| Rake | Positive |
