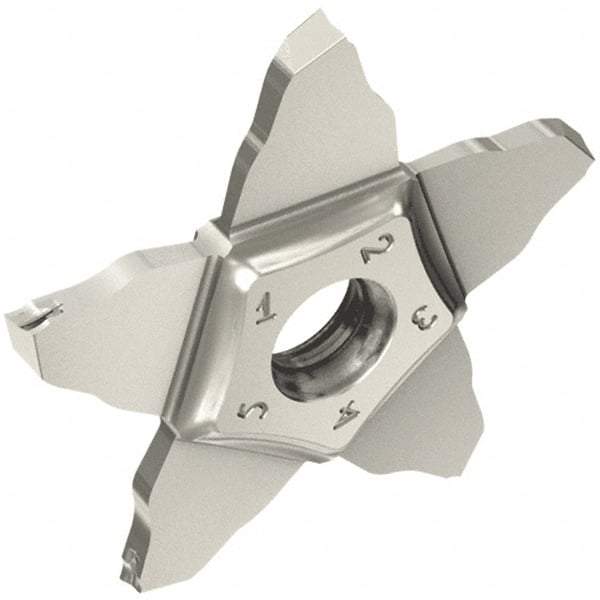

Iscar - PENTA34R150 J IC908 Grade, 0.059" Cutting Width, Carbide Cutoff Insert - 6° Right Hand Lead Angle, 0.003" Cnr Rad, TiAlN Coated, Other End
Item #: 30731665
Brand: Iscar
Model #: 6004770
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | PENTA |
| Insert Size | 34R150 |
| Lead Angle Direction | Right Hand |
| Lead Angle | 6 |
| Cutting Width (mm) | 1.50 |
| Cutting Width (Decimal Inch) | 0.0590 |
| Material Grade | Fine Grain |
| Manufacturer's Grade | IC908 |
| Coating | TiAlN |
| Series | PentaCut |
| Chipbreaker | J |
| Full Radius | No |
| Multi-Use Application | Parting |
| Coating Process | PVD |
| Corner Radius (Decimal Inch) | 0.0030 |
| Corner Radius (mm) | 0.08 |
| Overall Width (mm) | 4.29 |
| Overall Width (Decimal Inch) | 0.1690 |
