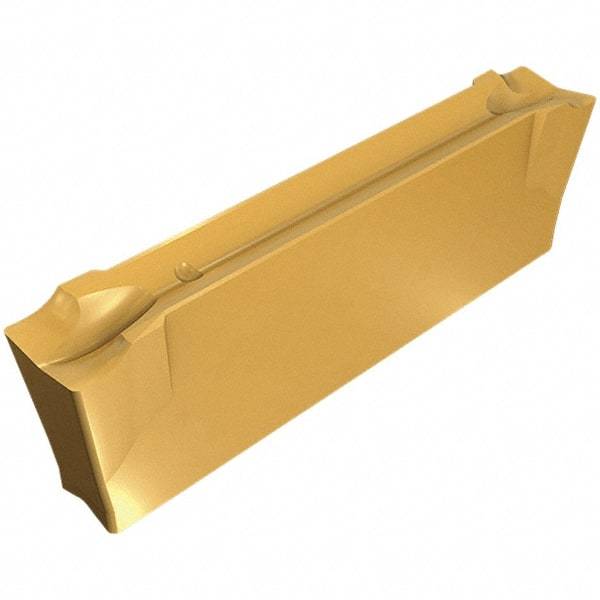

Iscar - DGN5003 JT IC908 Grade, 0.197" Cutting Width, Carbide Cutoff Insert - Neutral Lead Angle, 0.012" Cnr Rad, TiAlN Coated, Double End
Item #: 30731616
Brand: Iscar
Model #: 6004616
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | DGN |
| Insert Size | 5003 |
| Lead Angle Direction | Neutral |
| Cutting Width (mm) | 5.00 |
| Cutting Width (Decimal Inch) | 0.1970 |
| Material Grade | Fine Grain |
| Manufacturer's Grade | IC908 |
| Coating | TiAlN |
| Series | Do-Grip |
| Relief Angle | 7 |
| Chipbreaker | JT |
| Full Radius | No |
| Multi-Use Application | Grooving; Parting |
| Coating Process | PVD |
| Overall Length (mm) | 19.05 |
| Overall Length (Decimal Inch) | 0.7500 |
| Corner Radius (Decimal Inch) | 0.0120 |
| Corner Radius (mm) | 0.30 |
