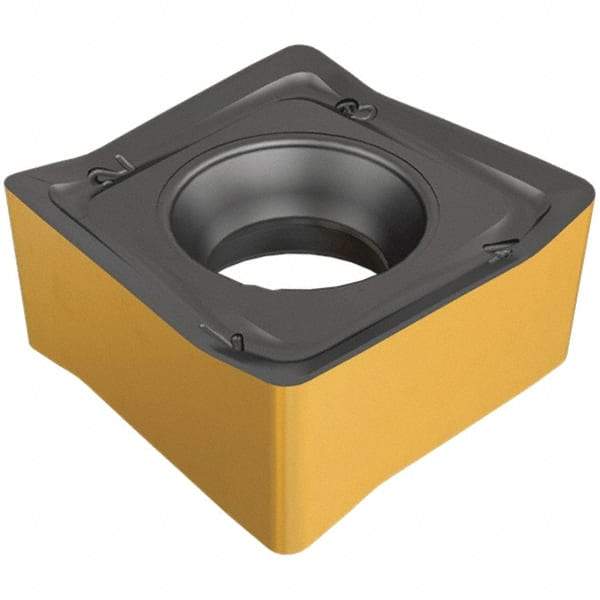

Iscar - S890 SNMU1305 MM Grade IC5100 Carbide Milling Insert - TiCN/Al2O3 Finish, 0.254" Thick, 13mm Inscribed Circle, 0.79mm Corner Radius
Item #: 30731020
Brand: Iscar
Model #: 5684632
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | S890 SNMU |
| Insert Size | 1305 |
| Material | Carbide |
| Manufacturer's Grade | IC5100 |
| Coating | TiCN/Al2O3 |
| Inscribed Circle (mm) | 13.00 |
| Inscribed Circle (Decimal Inch) | 0.5120 |
| Thickness (Decimal Inch) | 0.2540 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Corner Radius (mm) | 0.79 |
| Relief Angle | 0.000 |
| Coating Process | CVD |
| Included Angle | 90 |
| Shape | Square |
| Insert Hand | Right Hand |
| Chipbreaker | MM |
| Maximum Depth of Cut (mm) | 8.99 |
| Maximum Depth of Cut (Decimal Inch) | 0.3540 |
| ISO Number | S890 SNMU 1305PN-R-MM |
