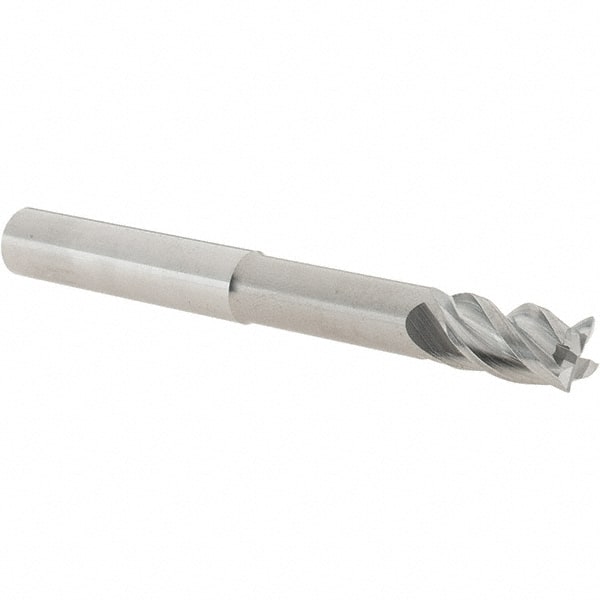

Iscar - 10mm Diam 4 Flute Solid Carbide 0.2mm Corner Radius End Mill
Item #: 30730758
Brand: Iscar
Model #: 5623229
Product Specifications
| Mill Diameter (mm) | 10.00 |
| Mill Diameter (Decimal Inch) | 0.3937 |
| End Type | Corner Radius |
| Corner Radius (mm) | 0.200 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Number of Flutes | 4 |
| Material | Solid Carbide |
| Finish/Coating | Uncoated |
| Length of Cut (mm) | 15.00 |
| Length of Cut (Decimal Inch) | 0.5906 |
| Shank Diameter (mm) | 10.00 |
| Overall Length (mm) | 92.00 |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Helix Angle | Variable |
| Variable Index | No |
| Variable Helix | No |
| Reach Length (mm) | 50.00 |
| Reach Length (Decimal Inch) | 1.9685 |
| Material Grade | Fine Grain |
| Single or Double End | Single |
| Minimum Helix Angle | 39 |
| Maximum Helix Angle | 41 |
| Length Type | Regular |
| Centercutting | No |
| Flute Direction | Right Hand |
| Extended Reach | Yes |
| PSC Code | 3455 |
