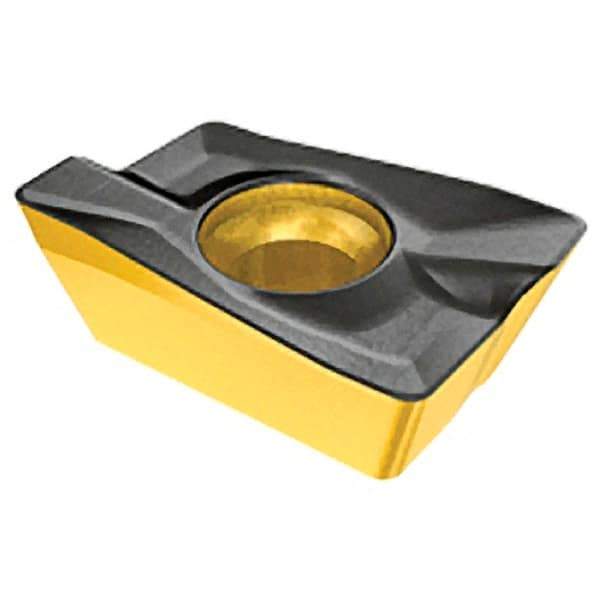

Iscar - HM90 ADCT1505 PL Grade IC808 Carbide Milling Insert - TiAlN/AlTiN/TiN Finish, 0.23" Thick, 0.79mm Corner Radius
Item #: 30730345
Brand: Iscar
Model #: 5607498
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | HM90 ADCT |
| Insert Size | 1505 |
| Material | Carbide |
| Material Grade | Fine Grain |
| Manufacturer's Grade | IC808 |
| Coating | TiAlN/AlTiN/TiN |
| Width (Decimal Inch) | 0.3800 |
| Length (Decimal Inch) | 0.6370 |
| Thickness (Decimal Inch) | 0.2300 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Corner Radius (mm) | 0.79 |
| Relief Angle | 15.000 |
| Coating Process | PVD |
| Included Angle | 85 |
| Shape | Parallelogram |
| Chipbreaker | PL |
| Maximum Depth of Cut (mm) | 14.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.5710 |
| ISO Number | HM90 ADCT1505PDR-PL |
