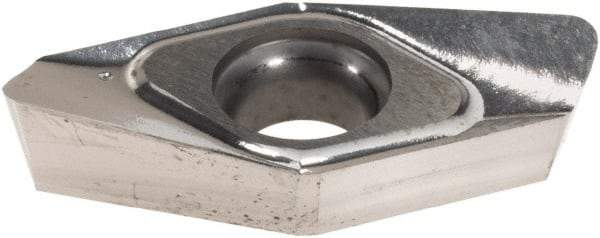

Iscar - HSM90S APCR140516 RP Grade IC28 Carbide Milling Insert - Uncoated, 0.236" Thick, 1.6mm Corner Radius
Item #: 30730329
Brand: Iscar
Model #: 5607488
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | HSM90S APCR |
| Insert Size | 140516 |
| Material | Carbide |
| Manufacturer's Grade | IC28 |
| Coating | Uncoated |
| Width (Decimal Inch) | 0.4920 |
| Length (Decimal Inch) | 0.9840 |
| Thickness (Decimal Inch) | 0.2360 |
| Corner Radius (Decimal Inch) | 0.0630 |
| Corner Radius (mm) | 1.60 |
| Relief Angle | 11.000 |
| Rake | Positive |
| Included Angle | 85 |
| Shape | Parallelogram |
| Chipbreaker | RP |
| Maximum Depth of Cut (mm) | 10.01 |
| Maximum Depth of Cut (Decimal Inch) | 0.3940 |
| ISO Number | HSM90S APCR 140516R-P |
