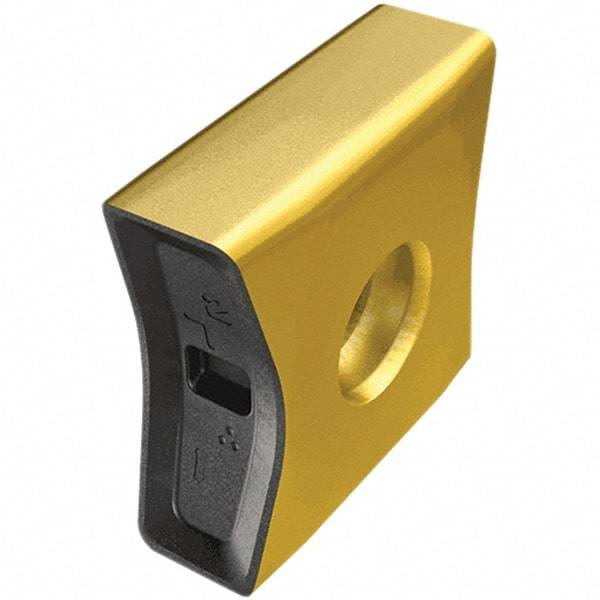

Iscar - LNAT150625 PM Grade IC810 Carbide Milling Insert - AlTiN/TiN Finish, 0.602" Thick, 2.49mm Corner Radius
Item #: 30730089
Brand: Iscar
Model #: 5606796
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | LNAT |
| Insert Size | 150625 |
| Material | Carbide |
| Manufacturer's Grade | IC810 |
| Coating | AlTiN/TiN |
| Width (Decimal Inch) | 0.2360 |
| Length (Decimal Inch) | 0.5910 |
| Thickness (Decimal Inch) | 0.6020 |
| Corner Radius (Decimal Inch) | 0.0980 |
| Corner Radius (mm) | 2.49 |
| Relief Angle | 0.000 |
| Coating Process | PVD |
| Included Angle | 90 |
| Shape | Rectangle |
| Insert Hand | Neutral |
| Chipbreaker | PM |
| ISO Number | LNAT 150625-TN-PM |
