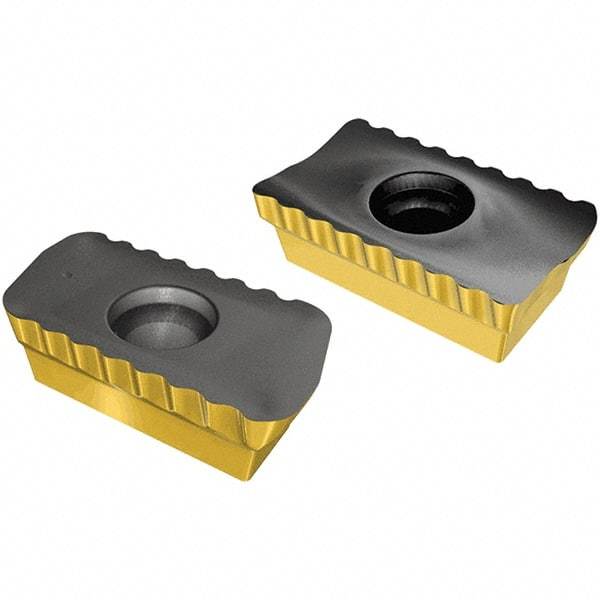

Iscar - HM90 ADCT1505 CF Grade IC830 Carbide Milling Insert - TiAlN/TiN Finish, 0.252" Thick, 0.79mm Corner Radius
Item #: 30730055
Brand: Iscar
Model #: 5606698
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | HM90 ADCT |
| Insert Size | 1505 |
| Material | Carbide |
| Manufacturer's Grade | IC830 |
| Coating | TiAlN/TiN |
| Width (Decimal Inch) | 0.3660 |
| Length (Decimal Inch) | 0.6180 |
| Thickness (Decimal Inch) | 0.2520 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Corner Radius (mm) | 0.79 |
| Relief Angle | 15.000 |
| Coating Process | PVD |
| Included Angle | 85 |
| Shape | Parallelogram |
| Chipbreaker | CF |
| Maximum Depth of Cut (mm) | 14.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.5510 |
| ISO Number | HM90 ADCT1505PDR-CF |
