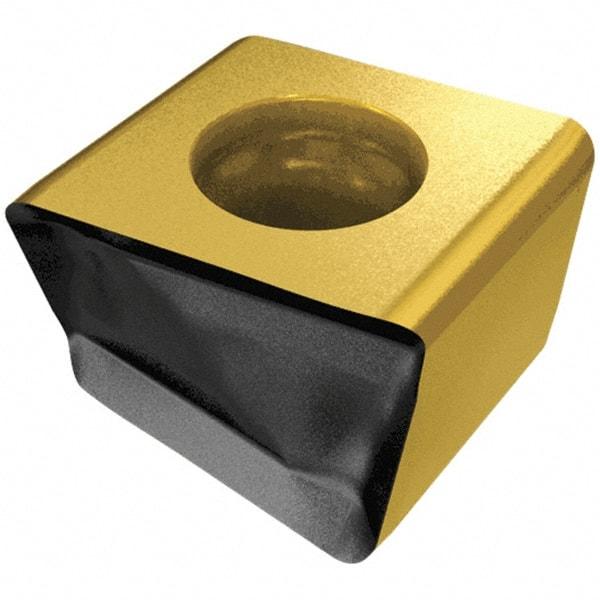

Iscar - HTP LNAR1006 P Grade IC07 Carbide Milling Insert - Uncoated, 0.399" Thick, 0.99mm Corner Radius
Item #: 30730022
Brand: Iscar
Model #: 5607337
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | HTP LNAR |
| Insert Size | 1006 |
| Material | Carbide |
| Material Grade | Fine Grain |
| Manufacturer's Grade | IC07 |
| Coating | Uncoated |
| Width (Decimal Inch) | 0.2560 |
| Length (Decimal Inch) | 0.4130 |
| Thickness (Decimal Inch) | 0.3990 |
| Corner Radius (Decimal Inch) | 0.0390 |
| Corner Radius (mm) | 0.99 |
| Relief Angle | 0.000 |
| Included Angle | 90 |
| Shape | Rectangle |
| Chipbreaker | P |
| ISO Number | HTP LNAR 1006FR-P |
