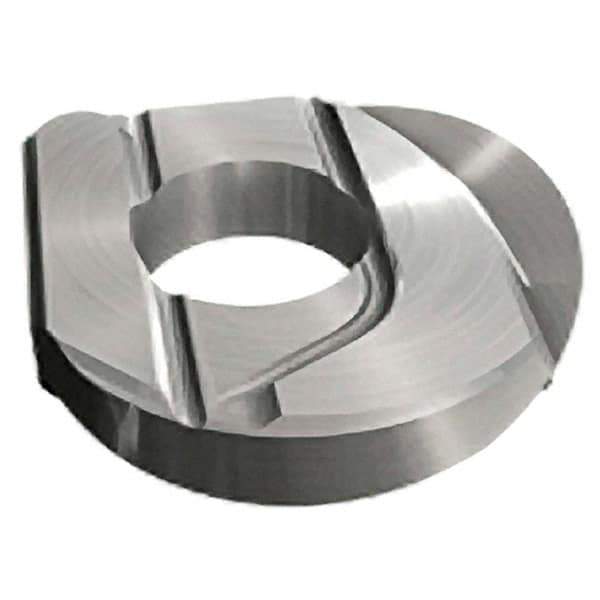

Iscar - HBRD160 QF Grade IC928 Carbide Milling Insert - TiAlN Finish, 0.1327" Thick, 8mm Corner Radius
Item #: 30729842
Brand: Iscar
Model #: 5604691
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | HBR |
| Insert Size | D160 |
| Material | Carbide |
| Manufacturer's Grade | IC928 |
| Coating | TiAlN |
| Thickness (Decimal Inch) | 0.1327 |
| Corner Radius (Decimal Inch) | 0.3150 |
| Corner Radius (mm) | 8.00 |
| Coating Process | PVD |
| Shape | Ball Nose |
| Chipbreaker | QF |
| Maximum Depth of Cut (mm) | 10.30 |
| Maximum Depth of Cut (Decimal Inch) | 0.4055 |
| ISO Number | HBR D160-QF |
